The Visible Light-Enhanced Osteogenic Functionality of NiTi-O Nanotube and Au-coated NiTi Shape Memory Metal Alloy

Introduction

To ensure mechanical stability and long-term osseointegration, adequate alveolar bone volume and height are critical prerequisites for successful dental implant placement. In cases of alveolar bone deficiency due to trauma, infection, or resorption following tooth extraction, bone augmentation procedures such as guided bone regeneration (GBR), sinus lift, or distraction osteogenesis are required before or during implant surgery. Titanium plates have been widely used as space-maintaining membranes to stabilize graft materials and prevent soft tissue collapse, thereby enabling vertical and horizontal bone augmentation (1-3). However, titanium plates frequently cause complications, such as soft tissue dehiscence, infection, and difficulty in surgical handling, owing to their rigidity and lack of shape adaptability, thereby limiting their clinical applicability to complex anatomical regions (4, 5).

To overcome these limitations, shape memory alloys (SMAs), particularly nickel-titanium (NiTi) alloys, have emerged as promising biomaterials. NiTi exhibits unique thermoelastic and superelastic properties, allowing deformation at low temperatures and spontaneous recovery of its original configuration upon heating. These characteristics allow the fabrication of self-expanding or self-stabilizing medical devices that can adapt to the surrounding tissues (6-8). In maxillofacial surgery, NiTi plates can be pre-shaped to match bone contours and then induce gradual periosteal elevation as they recover, creating an osteogenic environment through a “tenting effect” (9). Moreover, NiTi exhibits high corrosion resistance, fatigue strength, and biocompatibility, which have led to its extensive use in orthodontic wires, cardiovascular stents, and orthopedic fixation systems (10, 11).

Recent surface modification techniques have enhanced the bioactivity of NiTi-based implants. The formation of NiTi-O nanotubes (NTOs) via anodization increases surface area, wettability, and protein adsorption, thereby improving cell adhesion and osteogenic differentiation (12, 13). The introduction of noble metals such as gold (Au) or platinum (Pt) onto nanotube surfaces has been reported to provide additional functionalities, including antibacterial properties, improved hemocompatibility, and photoactivation capability through localized surface plasmon resonance (LSPR) (14-16). In particular, Au NPs possess high biostability and electrical conductivity, which may synergistically promote osteoblastic differentiation via ROS-mediated signaling or photothermal conversion under visible-light irradiation (17-19).

Visible light, particularly in the range of 550–650 nm, is recognized for its mild photothermal and photobiomodulatory effects on living tissues. Unlike ultraviolet light, which induces oxidative stress and DNA damage, visible light can activate cellular signaling pathways such as mitochondrial cytochrome c oxidase activity, ATP synthesis, and osteogenic gene expression (20-22). The photothermal activation of plasmonic nanoparticles on implant surfaces can enhance local microcirculation, induce mild thermal stimulation, and modulate osteoblast differentiation without cytotoxicity (23, 24). When integrated with NiTi shape memory alloys, this visible light-driven response may serve as a controllable, noninvasive stimulus to accelerate bone healing during the early postoperative period.

Based on these scientific rationales, we hypothesized that the incorporation of NiTi-O nanotubes and Au nanoparticles on the surface of NiTi shape memory alloys would enable visible light-induced plasmonic activation and enhance osteogenic performance. The hypothesis of this study was that localized photothermal stimulation induced by visible light irradiation enhances osteogenic signaling by inducing intracellular ROS and ATP production. In the present study, we performed an in vivo experiment to test this hypothesis. In vivo experiments were conducted using a rat calvarial defect model to evaluate bone formation quantitatively using microcomputed tomography (micro-CT) and histological analysis. This study aimed to establish a scientific basis for visible-light-responsive activation of NiTi-based biomaterials as a next-generation strategy for bone regeneration and dental implant applications.

Materials and Methods

1. Sample Preparation

Table 1 lists all experimental groups tested in this study. Five groups were established: three control groups (NiTi, NTO, ANT) and two light-irradiated experimental groups (NTO/600, ANT/600; LED wavelength = 600 nm, irradiation time = 10 min, intensity = 5.5 mW/cm²). NiTi-O nanotubes were fabricated via anodization of NiTi sheets (5 × 5 cm², 0.127 mm, Alfa Aesar, USA). Surfaces were sequentially polished with 600-, 1200-, and 2000-grit SiC papers, ultrasonically cleaned, and anodized in ethylene glycol containing 0.2 wt% NH₄F (Sigma Aldrich Co., MO, USA) and 1 vol% deionized water at 25 V for 1 h. After rinsing and drying at 60 ℃, the samples were annealed at 400 ℃ for 3 h (1 K/min) to crystallize the nanotubes. Au coatings were deposited using ion plasma sputtering (E-1030, Hitachi Co., Tokyo, Japan) for 3 s to obtain Au-NiTi-O nanotubes (ANT).

Table 1.

Experimental groups tested in this study

2. Animal Model and Surgical Procedure

Fifty 6-week-old male Sprague-Dawley rats (280 ± 20 g) were randomly assigned to five groups (n = 10). The animals were housed under controlled temperature and humidity with a 12-h light/dark cycle and acclimatized for one week. General anesthesia was induced using Zoletil (10 mg/kg; Bayer Korea Ltd., Seoul, Korea) and Rompun (5 mg/kg; Bayer Korea Ltd., Seoul, Korea), followed by local infiltration with 2% lidocaine containing 1:100,000 epinephrine. A midline incision was made to expose the calvarium, and an 8 mm–diameter defect was created using a trephine bur (THB80; Osung MND Co., Kimpo, Korea) without damaging the dura. Each defect was covered with a sample disc (NiTi, NTO, ANT, NTO/600, ANT/600) and then sutured using 5-0 nylon. The light-irradiated groups received 600 nm LED exposure (10 min/session) twice per week (five sessions for 2 weeks, 13 sessions for 6 weeks). The LED device was attached to the top cover of the cage (total height, 18 cm). Considering the height of the rats (approximately 13–15 cm), the distance between the light source and calvarial defect surface ranged from 3 to 5 cm during irradiation. The conditions of 600 nm LED irradiation were based on previous studies (22, 23), which reported photobiostimulation effects at the cellular level. After 2 and 6 weeks, the animals were sacrificed via CO₂ asphyxiation. The calvaria were harvested and fixed in 4% paraformaldehyde for 48 h. The procedure for the in vivo experiments was approved by the Wonkwang University IACUC (no. WKU23-58). Figure 1 shows the creation of an 8 mm-diameter circular calvarial defect in the rat skull (left) and placement of the experimental specimen over the defect site (right).

Figure 1.

The illustration images (A) and photographic images of creating an 8 mm–diameter circular calvarial defect in a rat skull (B) and placing the experimental specimen over the defect site (C).

Results

1. Micro-CT analysis

Table 2 lists the bone volume values for all experimental groups calculated by micro-CT analysis within the regions of interest. The number of samples analyzed in each group ranged from 4 to 6, as detailed in Table 2. At 2 weeks, the ANT and ANT/600 groups showed higher new bone volumes(3.381 ± 1.220 and 2.606 ± 1.721 mm³, respectively) compared to the other groups; however, these differences were not statistically significant (p>0.05).

Table 2.

Bone volume within the region of interest quantified by micro–computed tomography (micro-CT) at 2 and 6 weeks after surgery. Data are presented as mean ± standard deviation (SD) (unit: mm3). The number of samples analyzed in each group is indicated

At 6 weeks postoperatively, the bone volumes were 8.058 ± 3.813 mm³ for NiTi, 0.440 ± 0.269 mm³ for NTO, 13.588 ± 8.628 mm³ for ANT, 11.123 ± 2.913 mm³ for NTO/600, and 6.156 ± 2.917 mm³ for ANT/600. Significant group- dependent differences were observed at this time point (p<0.05). Specifically, the ANT group demonstrated the highest bone volume, which was significantly greater than that of the NTO group. The other groups (NiTi, NTO/600, and ANT/600) showed intermediate values with no statistically significant differences compared to either the ANT or NTO groups. In the 6-week experimental period, plate displacement from the sub-periosteal region was frequently observed, particularly in the NTO group.

Although our initial criterion was to exclude such displaced specimens to ensure data reliability, applying this strictly to the NTO group would have resulted in an excessive loss of data points, making statistical analysis impossible.

Therefore, for the NTO group, all surviving specimens were included in the volumetric analysis regardless of minor displacements. Consequently, the exceptionally low bone volume observed in the NTO group at 6 weeks should be interpreted with the understanding that mechanical instability likely compromised the osteogenic outcome.

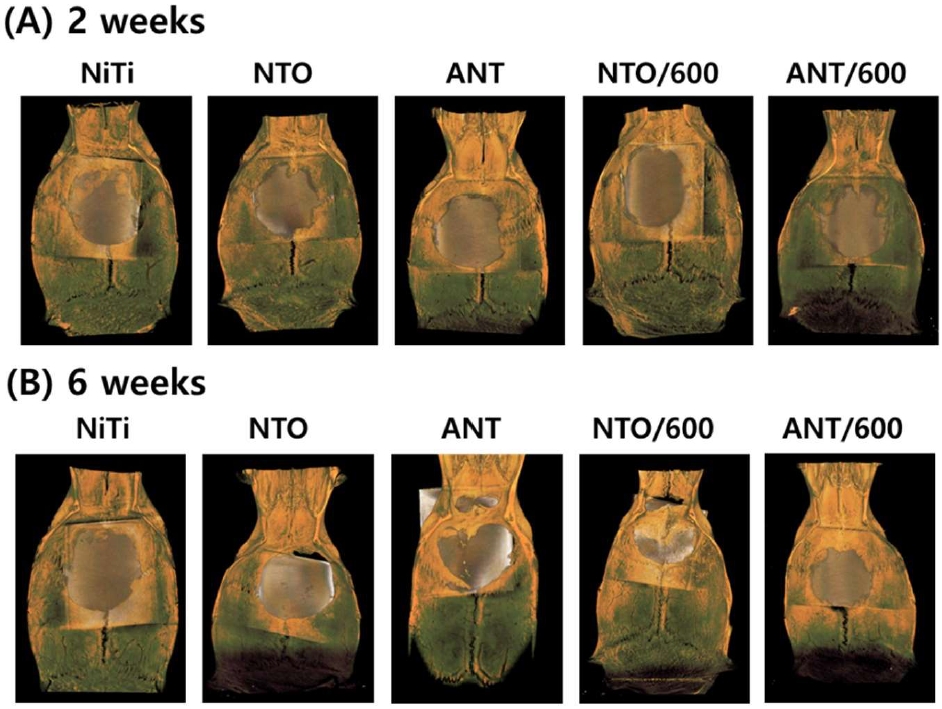

Figure 2 shows the three-dimensional micro–computed tomography (micro-CT) reconstruction images of rat calvarial defects in the NiTi, NTO, and ANT groups, with and without visible light irradiation.

Figure 2.

Representative three-dimensional micro–computed tomography (micro-CT) reconstructions of rat calvarial defects in the NiTi, NTO, and ANT groups with and without visible light irradiation at (A) 2 weeks and (B) 6 weeks post-operation. The images illustrate the spatial morphology of the calvarial defects and the extent of mineralized tissue formation within the defect region over time.

2. Hematoxylin & Eosin (H&E) staining

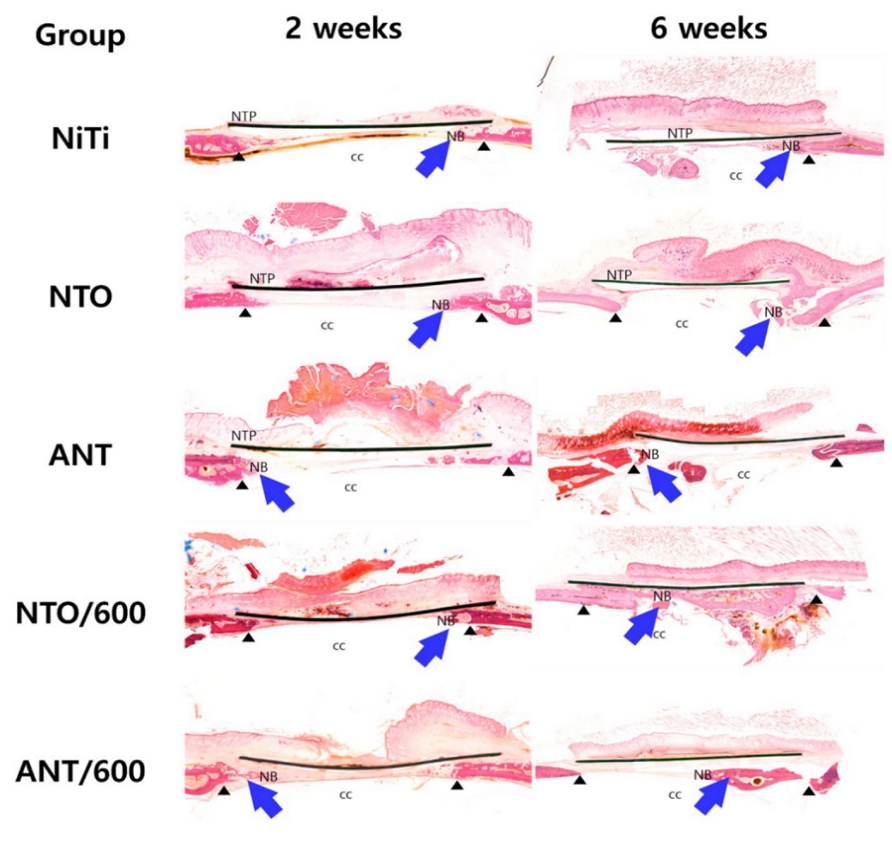

Figure 3 illustrates hematoxylin and eosin (H&E)–stained histological sections of rat calvarial defects. As shown in Figure 3, histology confirmed new bone formation in all groups at 2 and 6 weeks but without distinct qualitative differences in biocompatibility. In some cases, new bone was observed directly in contact with the NiTi plates, and no inflammatory cell infiltration was observed.

Figure 3.

Representative hematoxylin and eosin (H&E)–stained histological sections of rat calvarial defects. The calvarial defect margins are indicated by black arrowheads, while newly formed bone within the defect area is indicated by blue arrows. In all specimens, new bone formation is observed adjacent to the NiTi plate (NTP), extending along the defect region over the cranial cavity (cc). (NTP: NiTi plate; NB: newly formed bone; cc: cranial cavity.)

Discussion

This study evaluated bone regeneration in rat calvarial defects using NiTi SMAs modified with nanotubes, gold coatings, and visible light irradiation. Although the hypothesis of light-enhanced osteogenesis was not statistically supported, the data provide valuable in vivo insights. The use of non-porous plates, necessitated by fabrication challenges, likely restricts cellular and vascular infiltration, thereby constraining osteoconduction.

Regarding the photostimulatory effect, no statistically significant enhancement specifically attributable to LED irradiation was detected when comparing the irradiated groups (NTO/600 and ANT/600) with their non-irradiated counterparts (NTO and ANT) at 6 weeks postoperatively. The most likely explanation for this is the insufficient and non-uniform tissue dosimetry of 600 nm light in vivo. Although the 600 nm wavelength falls within the therapeutic optical window, its penetration capability is inherently limited compared to near-infrared (NIR) wavelengths owing to absorption and scattering by tissue chromophores, such as hemoglobin and melanin (25, 26). Previous studies have indicated that light intensity attenuates significantly even when light passes through thin soft tissue layers (27, 28). In this study, the rat scalp (approximately 1–3.6 mm thick) acting as a barrier likely absorbed a substantial portion of the incident photon energy, preventing the threshold localized surface plasmon resonance (LSPR) required for enhanced osteogenesis.

In terms of material comparison, significant differences in bone volume were observed between the specific groups, with the NTO group showing a significantly lower bone volume than the ANT group. This result is likely attributable to mechanical instability rather than material cytotoxicity. The lack of fixation allowed minor displacements that introduced variability and reduced the reproducibility of the micro-CT quantification. Continuous micro-movements of the non-fixed plates likely exerted physical irritation on the regenerating tissue, provoking osteoclastic activity and subsequent bone resorption (29, 30). This interpretation is supported by histological observations, which consistently showed new bone apposition adjacent to the NiTi surfaces across all groups, indicating excellent biocompatibility despite quantitative discrepancies.

Several limitations inherent to the experimental design are noted. The 8 mm critical-size calvarial model can introduce variability owing to methodological factors. Additionally, the general reduction trend or fluctuation across groups may reflect the physiological remodeling phase, in which the initially formed immature woven bone is resorbed and replaced by mature lamellar bone. Most importantly, the geometric instability caused by the absence of fixation pins is a confounding factor that likely underestimates the osteogenic potential of the materials.

Given the limitations of this study, future investigations should focus on two main strategies. To overcome optical limitations, near-infrared (NIR) sources should be considered to achieve deeper and more homogeneous energy delivery (31, 32). In addition, a new NiTi specimen design should be adopted to enhance mechanical stability after implantation. Pore-textured NiTi specimens are also expected to facilitate improved cell infiltration and vascularization. This technology holds potential for applications in clinical bone regeneration fields, such as alveolar bone augmentation and implant site reconstruction.

Conclusion

In summary, this study demonstrated the osteogenic potential of surface-modified NiTi alloys, particularly the Au-coated NiTi-O nanotube (ANT) surface, which exhibited the highest bone volume at six weeks. The NTO group showed significantly less bone formation, which was attributed to mechanical instability and plate displacement rather than material cytotoxicity, as evidenced by the consistent histological observation of new bone apposition adjacent to the NiTi surfaces across the groups. Although visible light irradiation did not yield a statistically significant enhancement in bone volume under the current conditions compared with non-irradiated controls, the overall findings validate the fundamental biocompatibility of the material. The limited photostimulatory effect was likely attributable to geometric and optical constraints, such as the nonporous plate design and light attenuation by the soft tissue. Therefore, future studies should focus on developing mechanically stable porous NiTi mesh structures and optimizing the optical parameters to fully leverage the synergistic potential of photothermal activation on this highly biocompatible platform.
